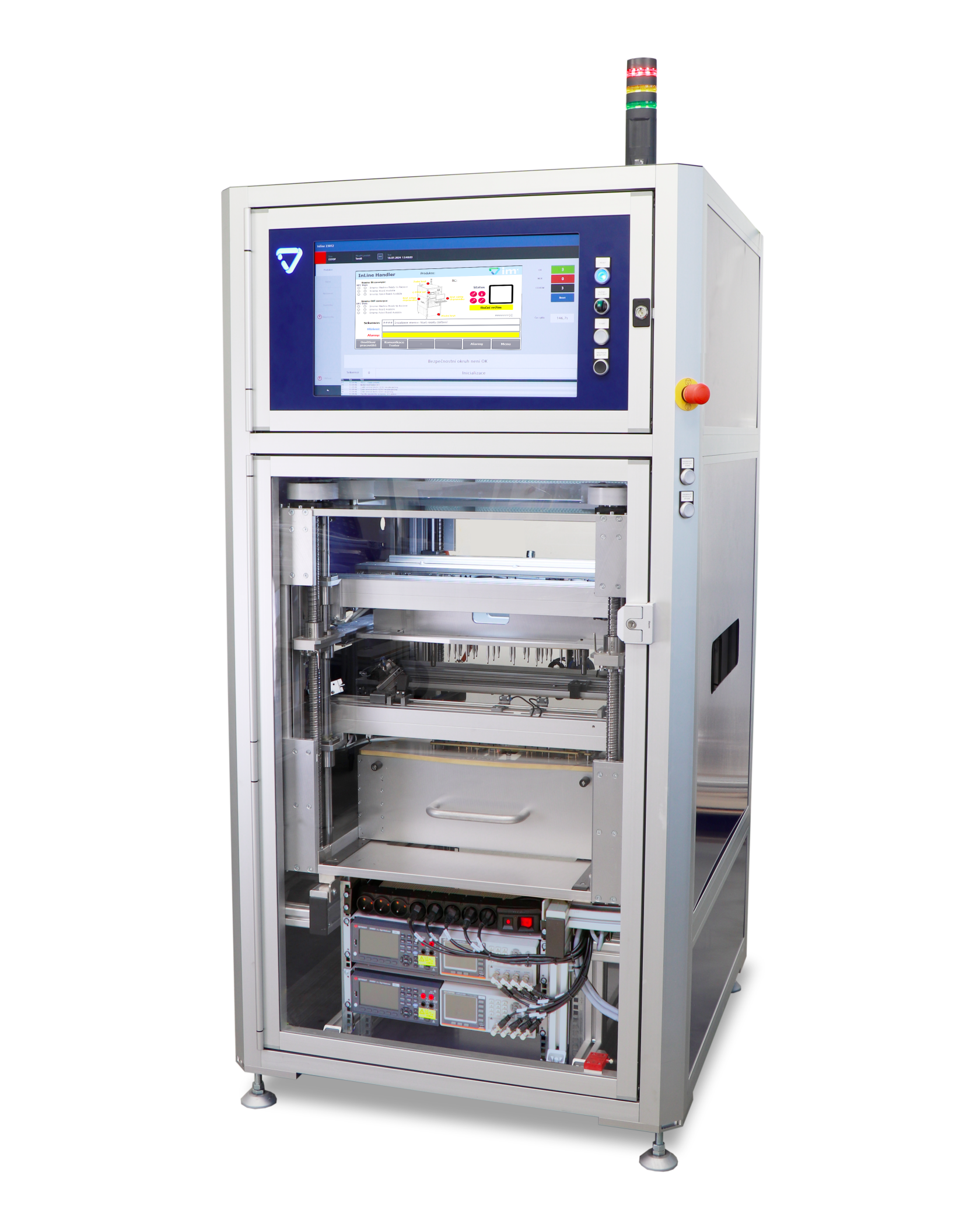

IMT Inline handler

IMT Inline handler

The inline handler from IMT is designed for highly efficient electrical and functional testing of PCBs in automated production lines. Its construction enables precise contacting via test fixtures and is optimized for direct compatibility with UNITES Systems testers.

Key Features

  • Ready for integration with an FCT/ICT tester
  • Motorized conveyor width adjustment
  • External barcode reader with automatic positioning
  • Adjustable fixture stroke for takt time optimization
  • Stoppers on the conveyor, in the fixture, and via sensors
  • Dual-stage fixtures
  • Special interface for wireless connection to UNITES FCT tester
  • Optional extensions such as laser marking, optical inspection, and additional functions
  • Top, bottom, and side contacting
  • Integration of third‑party measuring instruments
  • Direct integration into MES systems
  • Space beneath the module for an 8U rack, return conveyor, or other uses, including tester placement

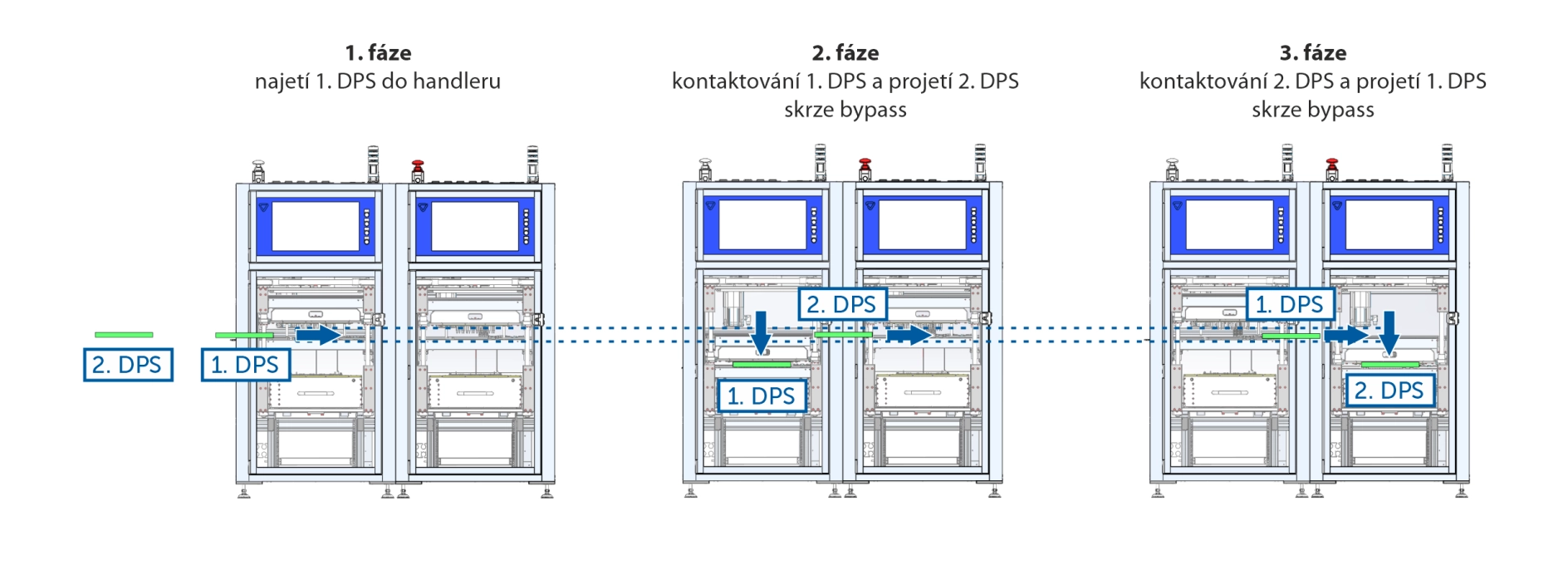

Bypass Conveyor Solution

Bypass conveyor

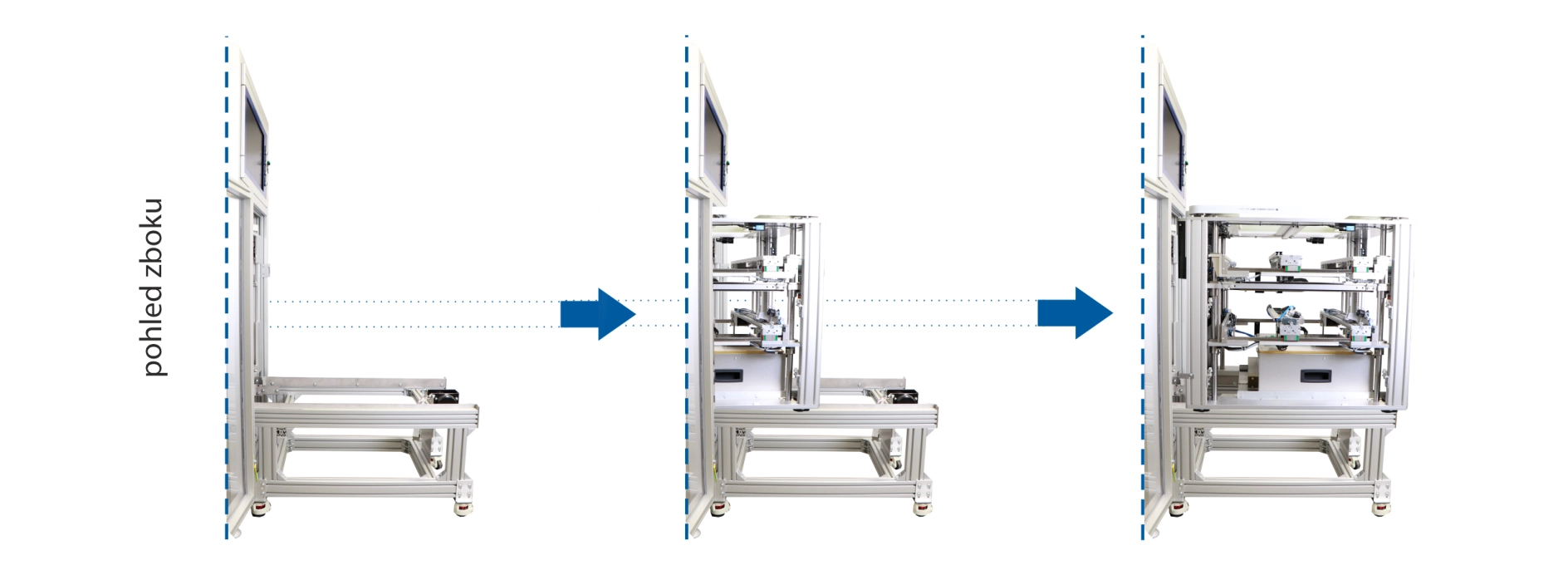

Removable Module to Minimize Downtime

Removable module

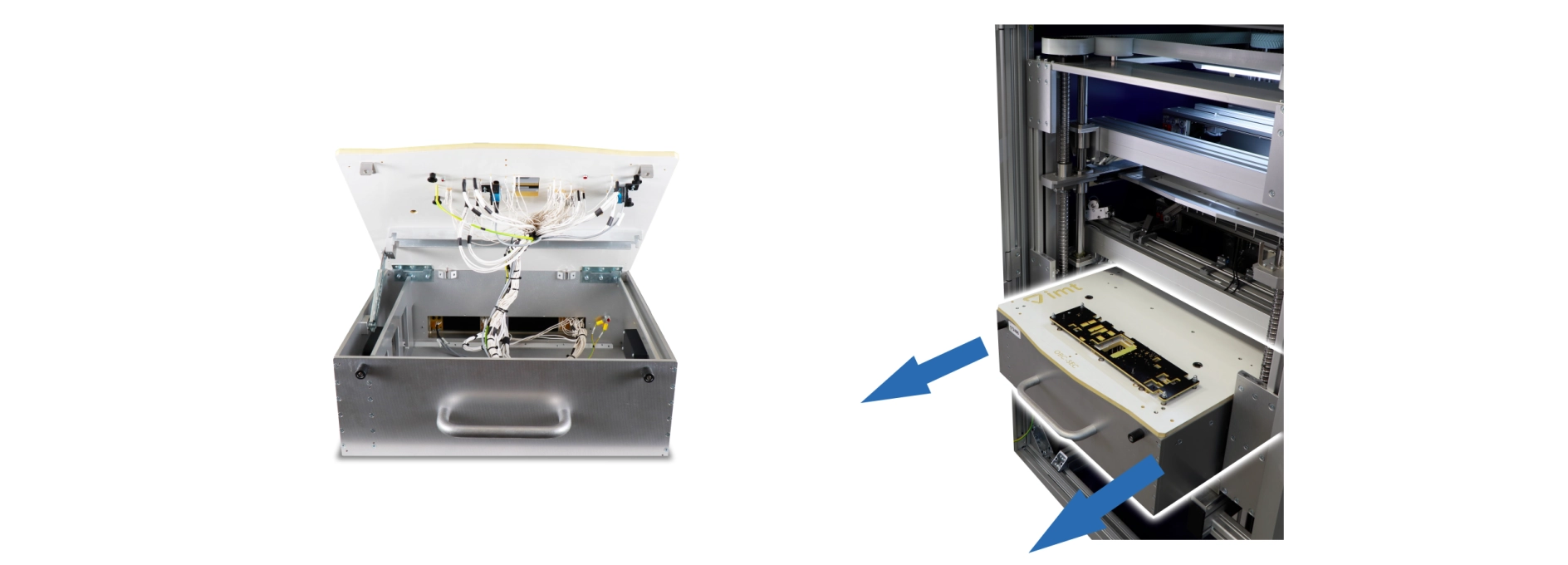

Interchangeable Fixtures

  • Fixtures can be changed by product type
  • Quick changeover within 1 minute
  • Designed with reduced weight for easier handling
  • Option to implement third‑party fixtures

Interchangeable fixtures

For detailed specifications, please contact us.
