KABTEC KT 2000di

KABTEC KT 2000di

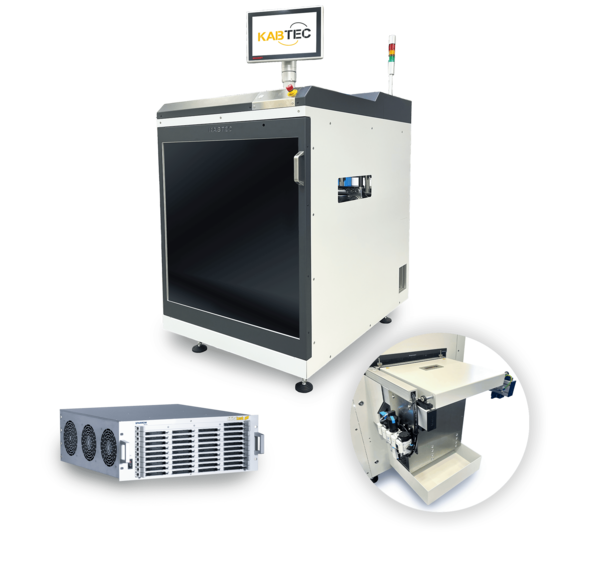

KT2000di is a handler for very large PCBs or panels, designed for integration of Ingun fixture components and ready for integration with a Digitaltest ICT tester.
It enables automated testing with high contact forces, quick fixture changeover, and is suitable for in-circuit and functional tests.

The KT2000di is a robust handler designed for very large PCBs or panels, featuring a high number of transfer points and capable of applying elevated contact forces. It fully automates handling for in‑circuit, functional, and combination testing, and supports near-zero-downtime product changeover with fixture change taking under one minute.

Product highlights

  • Handling of very large PCBs or panels
  • Dual-side, multi-level testing
  • Variable contacting stroke for functional and in‑circuit testing
  • Fixture change in under 1 minute
  • High-speed handling with approximately 3.8 seconds cycle time
  • User-friendly touch panel operation (HMI)
  • On-board flashing/programming of PCBs during test
  • Test system easily accessible from the rear of the machine
  • Integration of Ingun fixtures components
  • Ready for integration with a Digitaltest ICT tester
