Sliding door control unit

Sliding door control unit

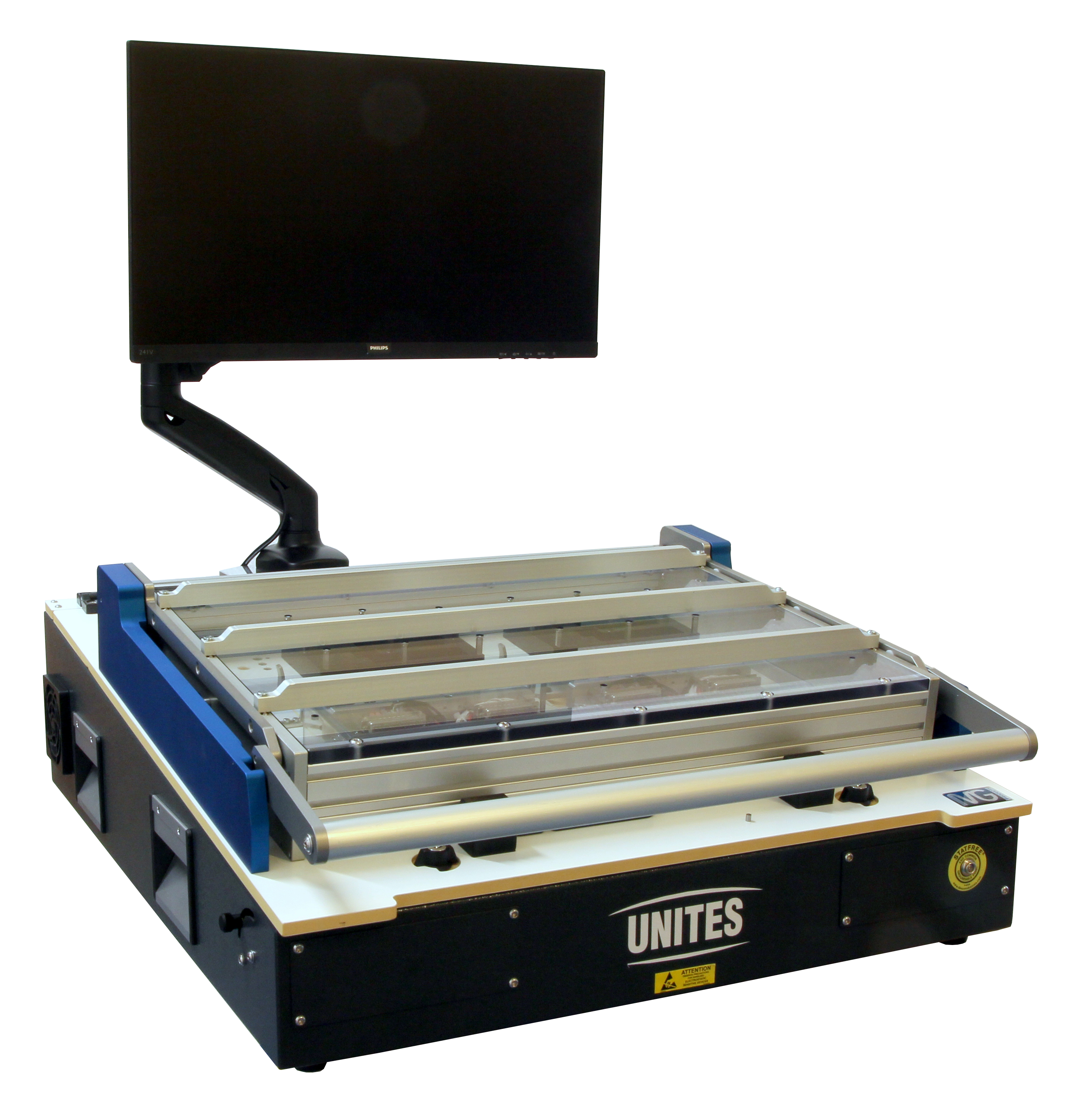

This project uses the smart fixture tester. PC and measurement equipement all is included in the fixture. This product testing car sliding door control unit. The customer only needs to connect keyboard,  mouse, printers, hand reader air and power line to the fixture.

Description

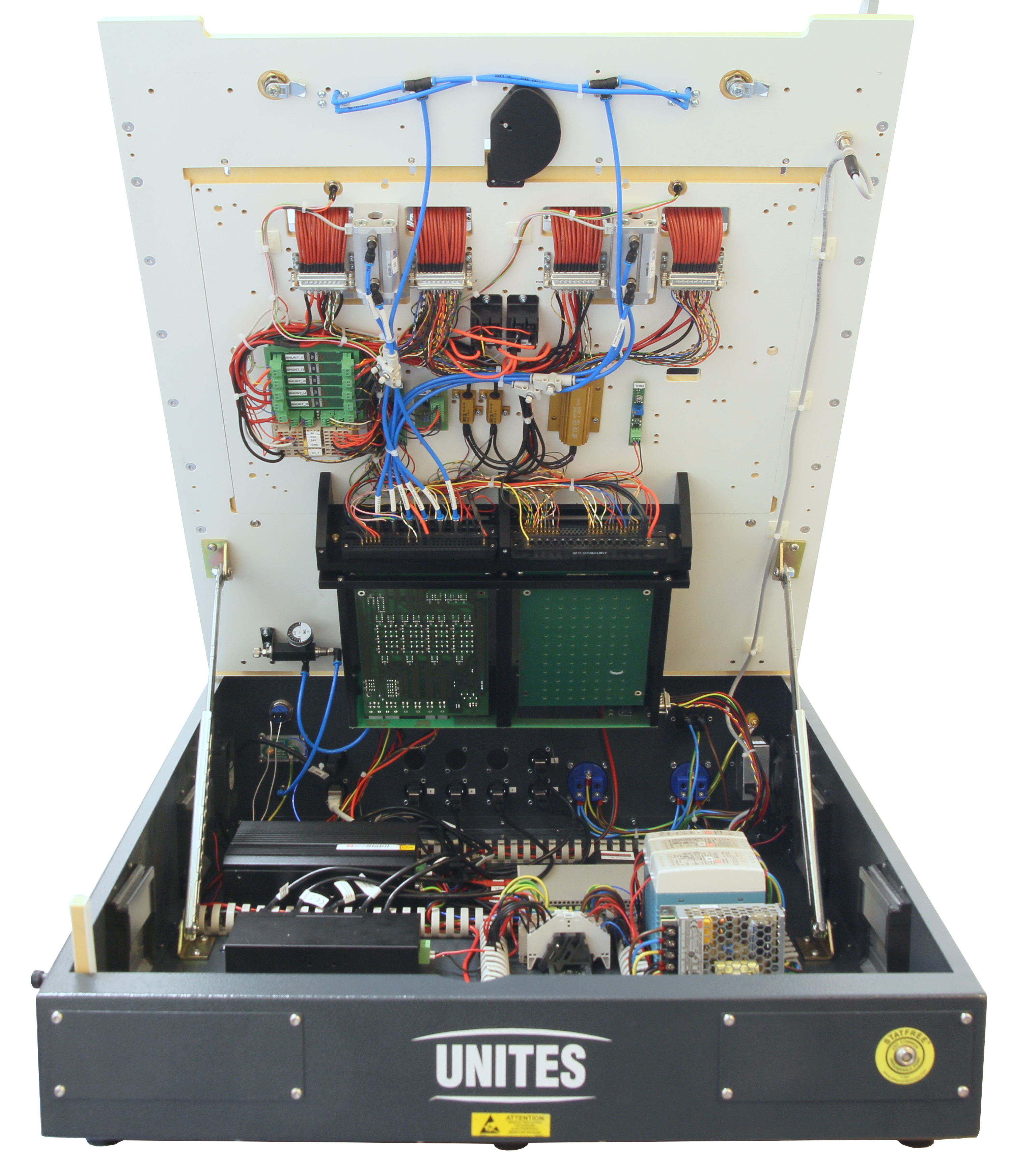

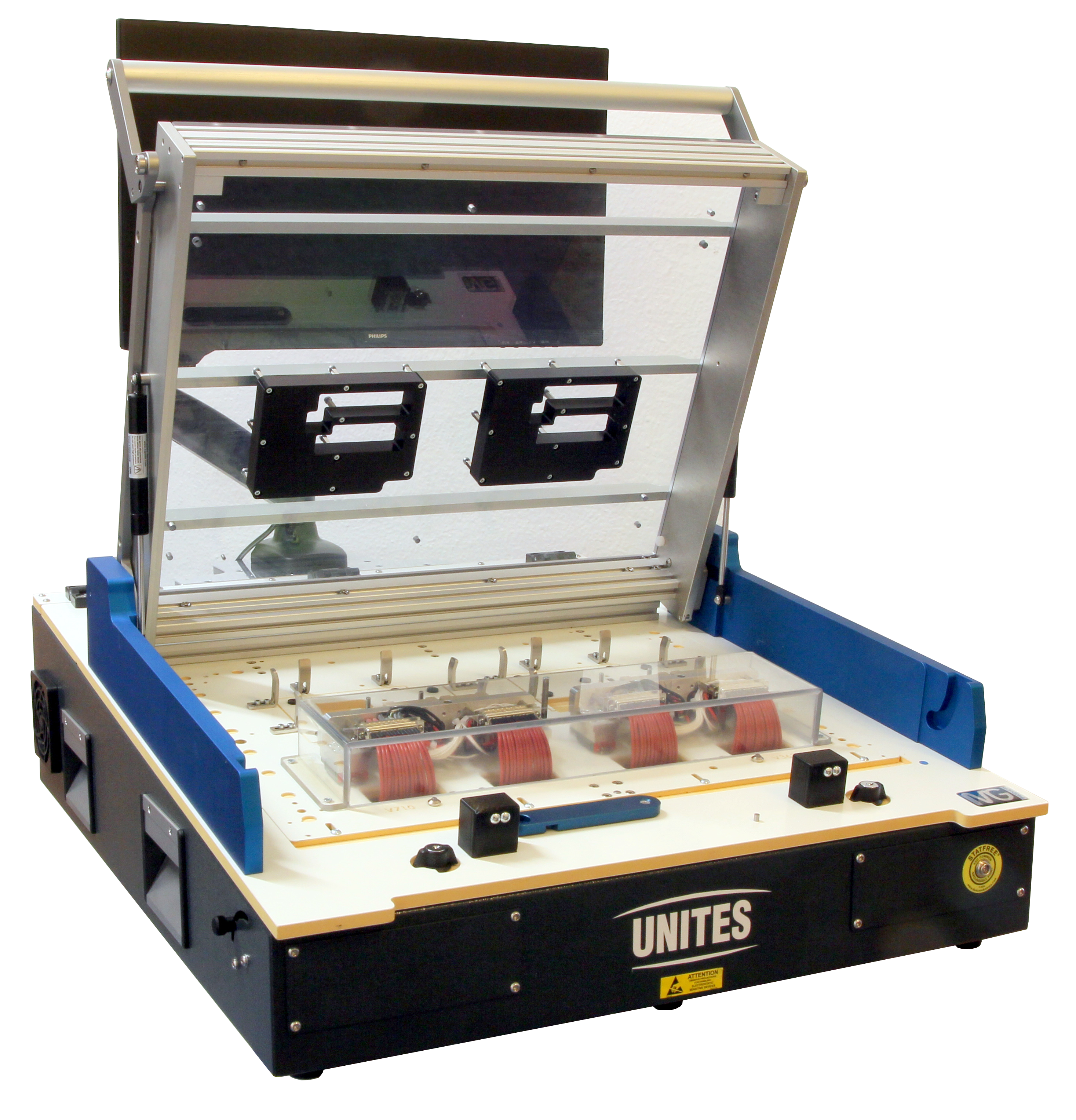

There are PC, CAN communication, loads, DMM included in fixture. DUT is contacted through three connectors by pneumatic valves. The tester has two positions for two different products. To tester you insert DUT box bottom, PCB and box lid and during fixture close is dut box locked.


Measurement

  • Supply voltage
  • Supply current
  • Sleep current
  • Load current
  • Load voltage



Other functions

  • Communication check
  • Golden samples
  • QR code reading
  • Label printing
  • Pneumatic contacting
  • Traceability
  • Contacting of Connectors
  • Load - resistors



Parameters

  • Power supply up to 15V / 19A
  • Communication - Digital I/O, CAN
  • Contacting - Connectors
